Use Cases and Best Practices

This topic presents common use-cases, examples, and best practices.

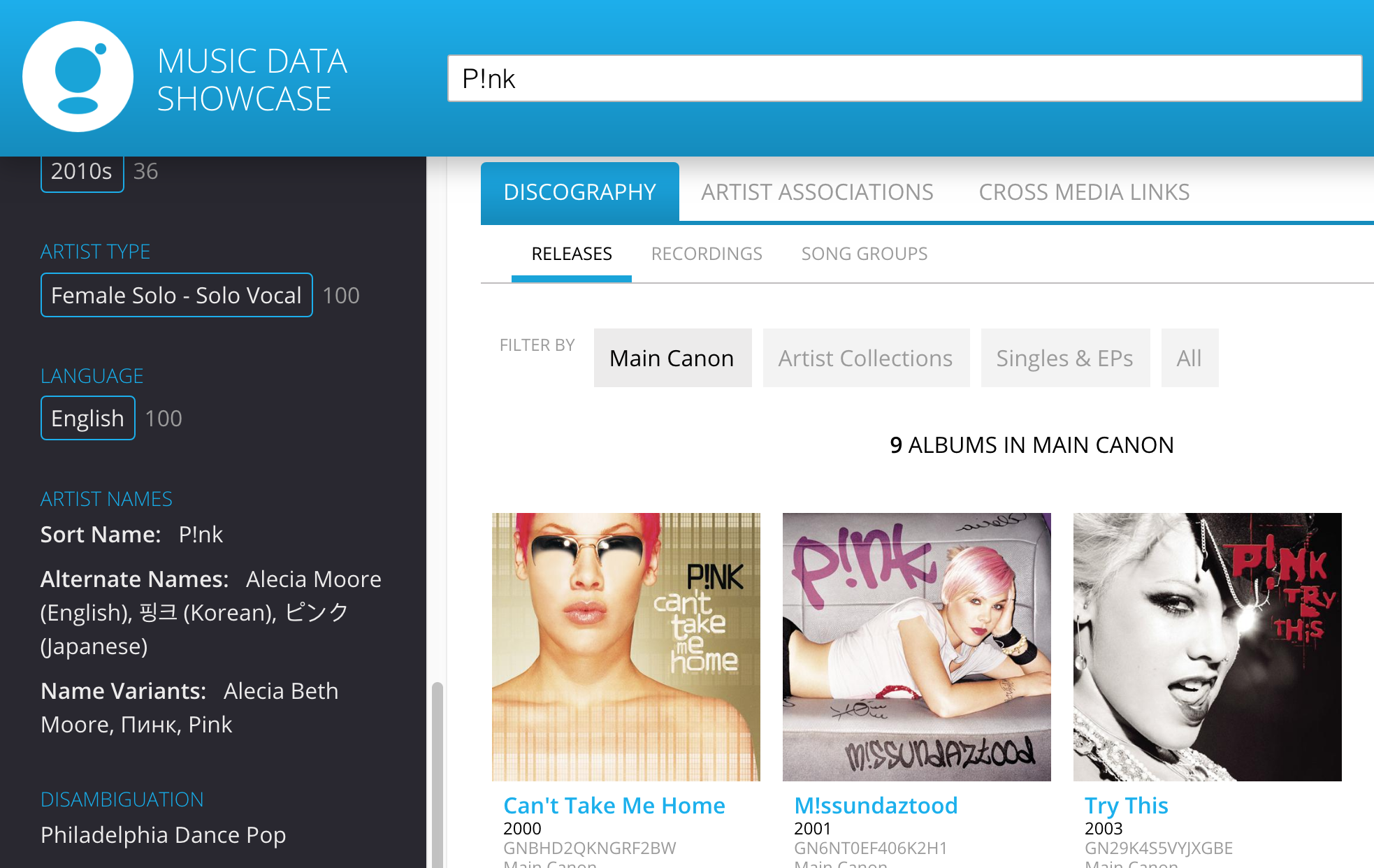

Display an Artist Catalog (Discography)

This section describes how to join and cross-reference files to display complete artist discography.

Album Master and Editions

Example

X by Ed Sheeran

Object Name	Description	Example
Album Master ID	The unique identifier for the master album	GNEH7NS4W15VQN9
Album Edition ID	The unique identifier for the album edition	GN7YJ63ENM30AST

Use Case: Album Master

For retrieving metadata for a specific album, Master ID provides the grouping of editions and links users to the preferred edition recommended to pull metadata from.

Example

Implementation	Base Package
Object Name	albumMasterID, preferredEditionID

• Join preferredEditionID from the Album Master file with albumEditionID in the Album Edition file to retrieve Edition level metadata from Album Edition file for each albumMasterID.

Use Case: Album Edition

For catalog display, album editions provide the complete list of discography published by the artist (for example, differentiating between editions with different number of tracks based on region, deluxe and special editions etc.)

Example

Implementation	Base Package
Object Name	albumMasterID, albumEditionID

• Group editions based on the albumMasterID from the Album Edition file to list out all albumEditionIDs mapped to it.

Recordings

Object Name	Description	Example
Recording ID	The unique identifier for the recording	GN0THW2YV0SWP23

Use Case: Display all appearances of a song or recording by that artist.

Example

Shape of You by Ed Sheeran

Implementation	Base Package
Object Name	albumEditionID, recordingID, songID

Each Song ID provides the different editions of the song. Each recording lists the different albums which that specific recording has been published. For the completeness, do not truncate the number of recordings and albums retrieved when compiling song and album lists.

• Join recordingID (under tracks array) in the Album Edition file with recordingID in the Recording file.
• To list out all recordings for each artist, for each artistID (under artist array) in the Recording file, list out all recordingIDs directly mapped to it.
• To list out all recordings based on songs for each artist, for each artistID (under artist array) in the Recording file, group by songID to list out all recordingIDs mapped to it.
• To retrieve all the album editions each recordingID appears in, look for the target recordingID (under tracks array) in the Album Edition and retrieve all the respective albumEditionIDs.

Artist Links (Key Artist/Member of Collaborations)

Object Name	Description	Example
Key Artist	Primary artist leading a group or collaboration	Group "The Miles Davis Quartet" has Key Artist: Miles Davis.

Use Case: Key Artist

Display all discography by an artist including their different backing band billings into one master discography on the main artist's page (defaults to separate).

Example

Prince as Key Artist of bands

Implementation	Search Package
Object Name	artistID, keyArtists

Prince is part of 5 different bands but is the "Key Artist" only in Prince & 3RDEYEGIRL, Prince & The Revolution and Prince & The New Power Revolution. "Key Artist" can be used to combine all albums for Prince and these 3 bands.

If the preference is to keep each artist and bands separate, the default is to use "Album Artist ID".

• Join artistID (under artist array) in the Album Master file with artistID in the Artist file.
• For each albumMasterID, retrieve both artistID and keyArtists from the Artist file.
• To retrieve all album masters the target artistID appears in, look for the target artistID in both artistID and keyArtists fields in the Artist file and retrieve all the respective albumMasterIDs in the Album Master file.

Use Case: Member of Collaboration

Include all collaboration tracks within an artists' Song and Recordings listings (defaults to separate).

Example

Luis Fonsi collaborations

Implementation	Search Package
Object Name	artistID, albumMasterID

• To display all the recordings that Luis Fonsi is in, retrieve all recordings under the Artist IDs of Luis Fonsi (GNBFZXJPH1GEW4V) and collaboration Artist IDs listed under "Member of Collaborations" in the "Related Artist" object.
• Join artistID (under artist array) in the Album Master file with artistID in the Artist file.
• For each albumMasterID, retrieve both artistID and memberOfCollaborations (under relatedArtists array) from the Artist file.
• To retrieve all album masters the target artistID appears in, look for the target artistID in both artistID and memberOfCollaborations (under relatedArtists array) fields in the Artist file and retrieve all the respective albumMasterIDs in the Album Master file.

Display Formatting (Sorting and Grouping)

How to sort and group artist discography for better user experience.

Original Artist Release (OAR) Type

Object Name	Description	Example
Release Type ID	The unique identifier for the release type	1,2,3,4, or 10.

Use Case: OAR Type

Display an artist's discography with Singles, EPs, and Collections separated out into different sections.

Example

ABBA discography

Implementation	Discovery Package
Object Name	releaseType

Based on the OAR Types, you can group and separate different recording types. ABBA's discography, for example, can be grouped together by displaying all OAR types, or separated by Main Canon (OAR Type 1), Collections (OAR Type 2,3,4) and Singles and EPs (OAR Type 10).

Depending on whether you are grouping by Album Master or Edition, you can group/sort/filter by releaseType based on in the respective files.

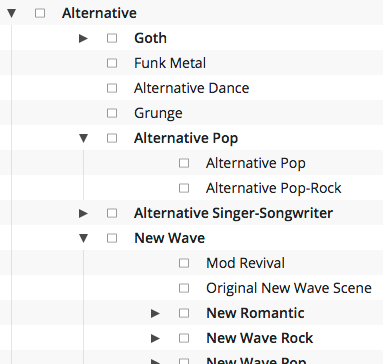

Hierarchies

Example

All descriptors have different levels of granularities. Depending on the details needed for each group, they can be categorized based on the "level" in the "nodes" of each respective group.

Implementation	Discovery Package
Object Name	hierarchyID, hierarchyName

Each hierarchyID or hierarchyName categorizes each branch by descriptors and/or regions. For example, "ERAS-DEFAULT", "GENRES-US-DETAILED", or "GENRES-EUROPE-SIMPLIFIED".

• Within a hierarchyID, set the initial filter to look for nodeIDs (under nodes array) by level = 1 (for example, "Tender" above). Based on the granularity you would like to sort by (level 1 meaning the broadest grouping), you can increase the granularity by searching level = 2 nodeIDs linked to the level = 1 nodeIDs under parentNodeID (for example, "Soft/Refined", "Lightly Stirring/Stately", "Lyrical Romantic", "Lite Groovy/Dreamy/Precious" above).
• To avoid duplication of the nodeName, ensure you are displaying either the nodeName for English language or filter by language_ID (under nodes > localizedNames > language_context array) so only the desired language output is returned.

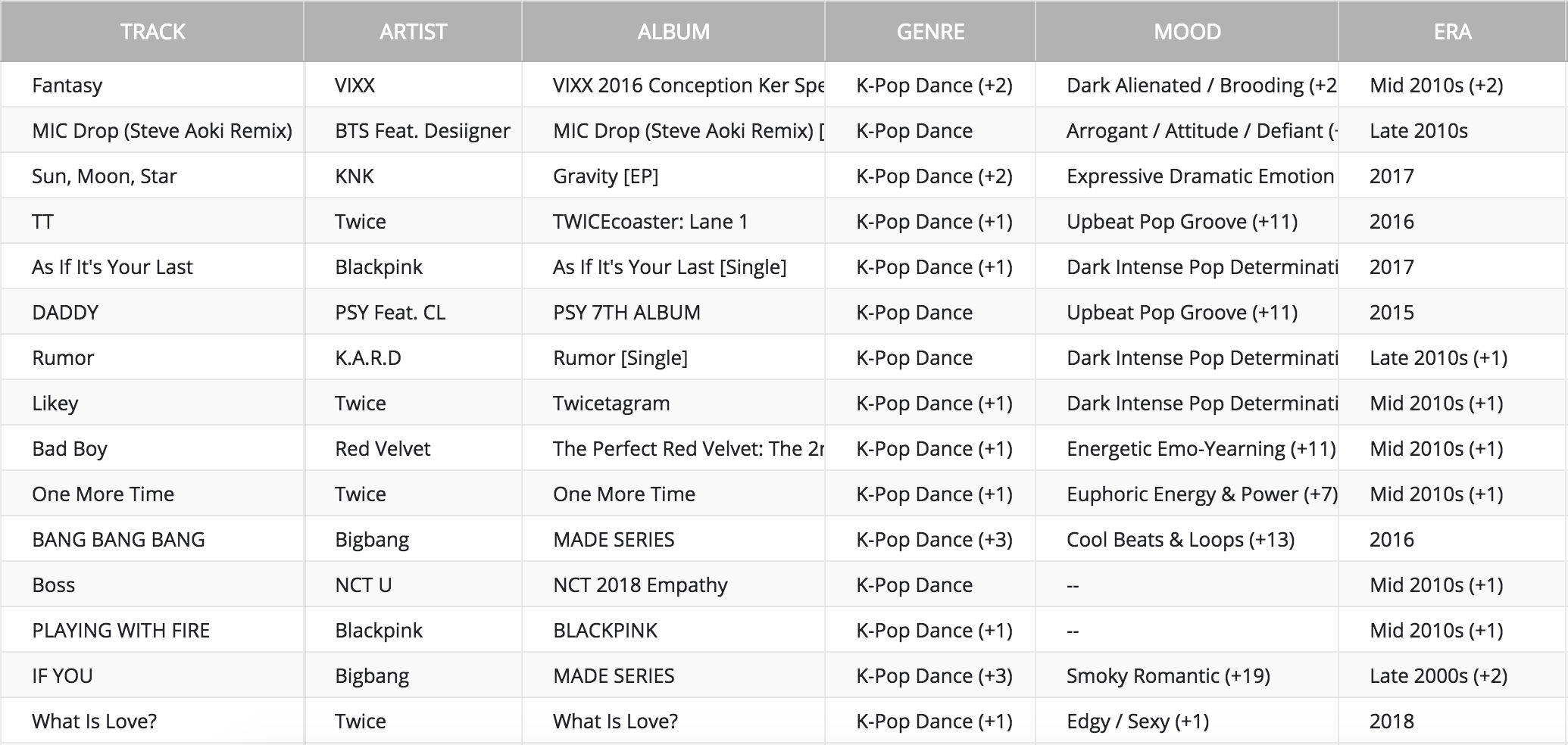

Descriptors (Genre, Origin, Era, Artist Type, and Language)

Object Name	Description	Example
Descriptors	Weighted attributes describing an artist or recording	Genre: Disco Language: English Origin: Stockholm Era: 1970s Artist Type: Mixed Group

Use Case: Genre

This use case describes how to find and group popular soundtracks and scores.

Example

Slumdog Millionaire

Implementation	Discovery Package
Object Name	albumMasterName, nodeID, nodeName, mappedDescriptorIDs (under nodes array)

• Join ID (under descriptors > genres array) in the Album Master file with mappedDescriptorIDs in the Hierarchy file.
• Find the genre name "Film Score" under nodeName in the Hierarchy file and retrieve its respective nodeID (28286) and mappedDescriptorIDs (3271).
• Filter out all Album Masters with ID (under descriptors > genres array) = 3271 in the Album Master file and/or search for movie or series title substring ("Star Wars" or "Harry Potter") with albumMasterName if wanting to highlight a particular franchise.

Use Case: Genre

This use case describes how to find and display Broadway and other famous musicals.

Example

Musical Film "Spotlight" by Jennifer Hudson

Implementation	Discovery Package
Object Name	artistName (under artist array), nodeID, nodeName, mappedDescriptorIDs (under nodes array)

• Join ID(under descriptors > genres array) in the Album Master file with mappedDescriptorIDs in the Hierarchy file.
• Find the genre name "Stage Musicals", or "Musical Film/TV Music" under nodeName in the Hierarchy file and retrieve its respective nodeID and mappedDescriptorIDs .
• Filter out all Album Masters that have ID (under descriptors > genres array) in the Album Master file = mappedDescriptorIDs in the Hierarchy file and/or search for "Original Broadway Cast" or "Original London Cast" within artistName (under artist array) in the Artist file if wanting to showcase a particular city's theater scene.

Use Case: Origin

This use case describes how to enable browsing of artists from a certain geographic region, by rolling up specific locations to their country/region.

Example

JSON file currently provides the lowest level (most granular) origin ID. However, based on the hierarchy level you would like to work with, you can browse artist location at different levels depending on which level you would like to roll up to (level 1 at continental level, level 2 at country level etc).

Implementation	Discovery Package
Object Name	artistID, mappedDescriptorID, level, nodeName, parentNodeID (under nodes array)

• Join ID(under descriptors > origins array) in the Artist file with mappedDescriptorIDs (under nodes array) in the Hierarchy file.
• Depending on the level at which you would like to work with, retrieve the level and nodeName search for higher level descriptors by looking up the parentNodeID in the Hierarchy file.

Descriptors with Weights

Use Case: Era

Regardless of weight, it is better to display artist era decades in chronological order when displaying to end customer.

Example

浜崎あゆみ Era descriptors

Implementation	Advanced Discovery Package
Object Name	artistID, mappedDescriptorID, level, nodeName, parentNodeID, nodeID (under nodes array)

• Join ID (under descriptors > eras array) in the Artist file with mappedDescriptorIDs (under nodes array) in the Hierarchy file.
• Depending on the level at which you would like to work with, retrieve the level and nodeName search for higher level descriptors by looking up the parentNodeID in the Hierarchy file.
• However, for display purposes, list by ID (under descriptors > eras array) in the Artist file, in order to sort in chronological order.

Use Case: Tempo

Due to rounding, some recordings may show in JSON files with 0-tempo value (i.e. the weight on this tempo is less than 0.5). For display, it is best practice to ignore/remove the 0-values from the tempo list.

Example

Volver Volver by Vicente Fernández

Implementation	Discovery Package
Object Name	weight (under descriptors > tempos array)

• For the recording that is being displayed, filter and remove tempos which have a weight = 0 from results.

Popularity Scores

Object Name	Description	Example
Popularity	Popularity scores by region and type	US All Time Popularity Trending Popularity

Use Case: Popular Artists

Use popularity scores to display the most popular Artists in a week/month based on current scores.

Example

Instead of displaying artist catalog in alphabetical order, use popularity scores to sort display by most popular artists in a week/month for user recommendations.

Implementation	Engagement Package
Object Name	region, score, type (under popularity array)

• Based on the user location, filter display results by region and the type of score you are looking for between trending and historical.
• Sort Artists in order of score (under popularity array).

Use Case: Popular Recordings of an Artist

Use popularity scores to display the most popular recordings of an artist.

Example

Recording display for Adele

Implementation	Engagement Package
Object Name	region, score, type (under popularity array)

• Based on the user location, filter display results by region and the type of score you are looking for between trending and historical.
• Filter based on the target Artist and sort recordings in order of score (under popularity array).

Display using Languages and Locations

This section describes how to manage display artist discography based on user location or language preferences.

Artist Language Context

Example

A.R. Rahman

Object Name	Description	Example
Languages	Languages associated with the artist	Tamil, Hindi, English and Bengali
Language Weights	Percentage relevance of each language	Tamil = 39%, Hindi = 35%, English = 22%, Bengali = 4%

Use Case: Language and Script IDs

Filter an artist's output to only packaging in a certain language or script in your audience's local script and/or language when available.

Example

Beyoncé's metadata presented in Korean script

Implementation	Search and Discovery Package
Object Name	artistID, ID (under descriptors > genres, languages, origins, eras, artistTypes array), name (under nodes > localizedNames array)

Depending on the location or the language selection of the user, display the correct language script.

• For each artistID in the Artist file, non-English translations are found in artistName (under alternateNames array). To search by the specific target language, you can search by its languageID (for example, Arabic = 74496, Japanese = 74516).
• For each descriptor, Join ID (under descriptors > genres, languages, origins, eras, artistTypes array) in the Artist file with mappedDescriptorIDs (under nodes array) in the Hierarchy file.
• Locate the nodeID with the mappedDescriptorIDs (under nodes array) and search/filter by the target language_ID (under nodes > localizedNames > languageContext array) and display name (under nodes > localizedNames array).

The same approach can be used for:

• Artists IDs in Album Master, Edition, Recording and Song file
• Album metadata in the Album Master data
• Descriptor IDs in Master and Recording file

Region	Artist Metadata
US	Every artist in the North American dataset should default to 'Latin' script (script_id = 74989).
Europe	Every artist in the Europe dataset should default to 'Latin' script (script_id = 74989).

Album (Master and Edition) Language Context

Object Name	Description	Example
Album Language	Language context for album titles	"Radio-Activity" Language: English Script: Latin "Radio-Aktivität" Language: German Script: Latin

Use Case: Filter/Sort based on User Preferred Language

Filter or sort a multilingual artist's releases by the user's preferred language.

Example

Radio-Activity by Kraftwerk

Implementation	Discovery Package
Object Name	albumMasterName

• Based on the user's location or language selection, sort/filter artist discography based on the album language so the more relevant results are presented to users.
• With the target languageID (for example, Arabic = 74496, Japanese = 74516), search for albums with matching languageID (under languageContexts array) in the Album Master file to filter or display these relevant albums first.

Use Case: Filter Albums by Region

Based on the different regions that clients have subscribed to, filter albums by the relevant artist languages and scripts to filter out albums that are not published for the specific region.

Example

ayu-mi-x II by 浜崎あゆみ

Implementation	Search and Discovery Package
Object Name	albumMasterID, name (under nodes > localizedNames array)
File Name	Hierarchy

Album "ayu-mi-x II" released a Japanese version and a US + European version in 2000. For Korean regional users, if there is a Chinese and Korean version, Gracenote recommends filtering out albums with Chinese and Korean scripts to not distract Korean users with excessive album data not relevant to them.

• For each albumMasterID in the Album Master file, the album language can be found in languageID, scriptID (under languageContexts array). To filter results by the specific target language for each region, you can filter by its languageID (for example, Arabic = 74496, Japanese = 74516).
• For each descriptor, Join ID (under descriptors > genres, languages, origins, eras, artistTypes array) in the Album Master file with mappedDescriptorIDs (under nodes array) in the Hierarchy file.
• Locate the nodeID with the mappedDescriptorIDs (under nodes array) and search/filter by the target language_ID (under nodes > localizedNames > languageContext array) and display name (under nodes > localizedNames array).

See table below at the bottom for suggested language script filtering based on region.

Region	Album Metadata	Descriptors
Latin America	Show all albums in Spanish and Portuguese languages using the regional scripts. language_id = 74529, 74528 script_id = 74989	Show all descriptors in Spanish language using the regional hierarchies language_id = 74529 hierarchyID = 154, hierarchyName = GENRES-LATIN-AMERICA-SIMPLIFIED hierarchyID = 159, hierarchyName = GENRES-LATIN-AMERICA-DETAILED
Japan	Show all albums in Japanese language using the regional scripts. language_id = 74516 script_id = 74985	Show all descriptors in Japanes language using the regional hierarchies. language_id = 74516 hierarchyID = 85, hierarchyName = GENRES-JAPAN-DETAILED hierarchyID = 86, hierarchyName = GENRES-JAPAN-SIMPLIFIED

Rich Media: Artist and Album Images

This section describes how to link artist and album images

Artist Images

Object Name	Description	Example
Artist Image	Image metadata for artists	"size": "XLARGE", "width": "1080", "height": "720", "value": "http://www.example.com/cds/2.0/image/DD79/1752/D161/A8A9_xlarge.jpg"

Use Case: Member of Collaborations Images

If collaboration image is not available, use image of the primary artist in the collaboration.

Example

Justin Bieber collaborations

For "Chris Brown Feat. Justin Bieber" (Arist ID = GN7H1E648SAGFMP), Chris Brown is the primary artist, hence Chris Brown's artist imagery should be used.

For "Justin Bieber & Mariah Carey" (Arist ID = GN9KP26A4V4ZW4Z), Justin Bieber is the primary artist, hence Justin Bieber's artist imagery should be used.

Implementation	Search Package
Object Name	artistID, recordingID, ID (under releaseType array)

• Join artistID (under artist array) in the Album Edition file with artistID in the Artist file.
• Search for the target collaboration artistID (under tracks > artist array) and filter by ID (under releaseType array) not equal to 2 and 4 (multi-artist main canons and collections) in the Album Edition file. This will provide the list of album editions where the collaboration recording is published in the key artists' album.
• Retrieve the artistID (under artist array) of the album edition, and use the artist image from the URL value (under images > artistImages array) of the respective artistID in the Artist file.

Use Case: Musical and Soundtracks

For recordings from films or musicals, there will not be any specific artist imagery available for display. In those cases, look up the cover art of the soundtracks.

Example

Jai Ho recording from Slumdog Millionaire

Implementation	Discovery Package
Object Name	recordingID (under tracks array), recordingID, nodeID, nodeName, mappedDescriptorIDs (under nodes array)

• Join recordingID from the Album Edition file with recordingID in the Recording file to retrieve recording level descriptors ID (under descriptors > genres array).
• Join ID (under descriptors > genres array) in the Recording file with mappedDescriptorIDs in the Hierarchy file. To retrieve the genre names for each recording. For the example above, recordingID = GN2715H5FNQ39TE, ID (under descriptors > genres array) = 3271 in Recording file. Which is found to be under mappedDescriptorIDs in nodeID = 36182, nodeName = General Film Music.
• For recordingIDs where Genre links to soundtracks or films such as "General Film Score", populate artist imagery directly with the album cover art, found under the URL value (under images > albumImages array) in the Album Edition file.

Use Case: Key Artists/Primary Artists

For groups without images, fall back to use key party image.

Example

Prince & The Revolution

If there was no image available for "Prince & The Revolution", retrieve the key artist ( object "KeyArtists") and use artist image for Prince.

Implementation	Search and Engagement Package
Object Name	artistID, artistID (under relatedArtists > keyArtists array)

If band artistID (for example, Prince & The Revolution, aristID = GNDKZ3NT8NXQ740) returns "artistImages": null, search for artistID (under relatedArtists > keyArtists array).

With the artistID (under relatedArtists > keyArtists array), you can leverage the artist imagery of the key artist using the URL value (under images > artistImages array).

Cover Art

Object Name	Description	Example
Cover Art	Album cover art metadata	"size": "XLARGE", "width": "1078", "height": "1080", "value": "http://www.example.com/cds/2.0/cover/CFE4/8375/25BE/79DA_xlarge.jpg"

Use Case: Main Canon Image

If cover art is not available for the specific edition, propagate to use album master.

Example

Funhouse by P!nk

If "Funhouse: The Tour Edition" (Edition ID: GN85RB0D523VSTP) did not have a cover art available, the cover art of the Master Album (Master ID: GN05Q0ZZKHAZQ2Z) should be used.

Implementation	Engagement Package
Object Name	albumMasterID, preferredEditionID, albumImages (under images array)

• Join albumMasterID from the Album Edition file with albumMasterID in the Album Master file to retrieve preferredEditionID for each albumEditionID.
• For the target album edition, if albumEditionID does not equal albumEditionID and "albumImages": null (under images array) in the Album Edition file, use the URL value (under images > albumImages array) under the preferredEditionID.

Use Case: Single Album Image

If cover art is not available for master edition, look for other editions of the same single album.

Example

Depend on You by 浜崎あゆみ

Implementation	Base Package
Object Name	albumMasterID, preferredEditionID, albumImages (under images array)

• For the preferred editions do not have cover art available (Edition ID: GN4CV15FAQDGAT9), propagate to look for cover arts under different editions (Edition ID: GN7RCGJ3FCK9ZPE).
• Join albumMasterID from the Album Edition file with albumMasterID in the Album Master file to retrieve preferredEditionID for each albumEditionID.
• For the target album edition,iIf "albumImages": null (under images array) and albumEditionID equals preferredEditionID in the Album Edition file, search for other album editions which have the same albumMasterID and use the URL value (under images > albumImages array) under the other album editions.

Searching

This section describes how to provide an effective search user interface.

Artist Name Language Context (Alternate Names/Name Variants/Disambiguation)

Object Name	Description	Example
Alternate Names	Alternative names for artists in different languages	Alternate name for The Weekend is: 위켄드
Name Variants	Different variations of artist names	Names Variants for The Weekend are: Abel Makkonen Tesfaye

Use Case: Artist Name

How to enable searches to find artists with very short names or generic word names.

Example

MØ, X, The Ex, The The, The Band

Implementation	Base Package
Object Name	artistID

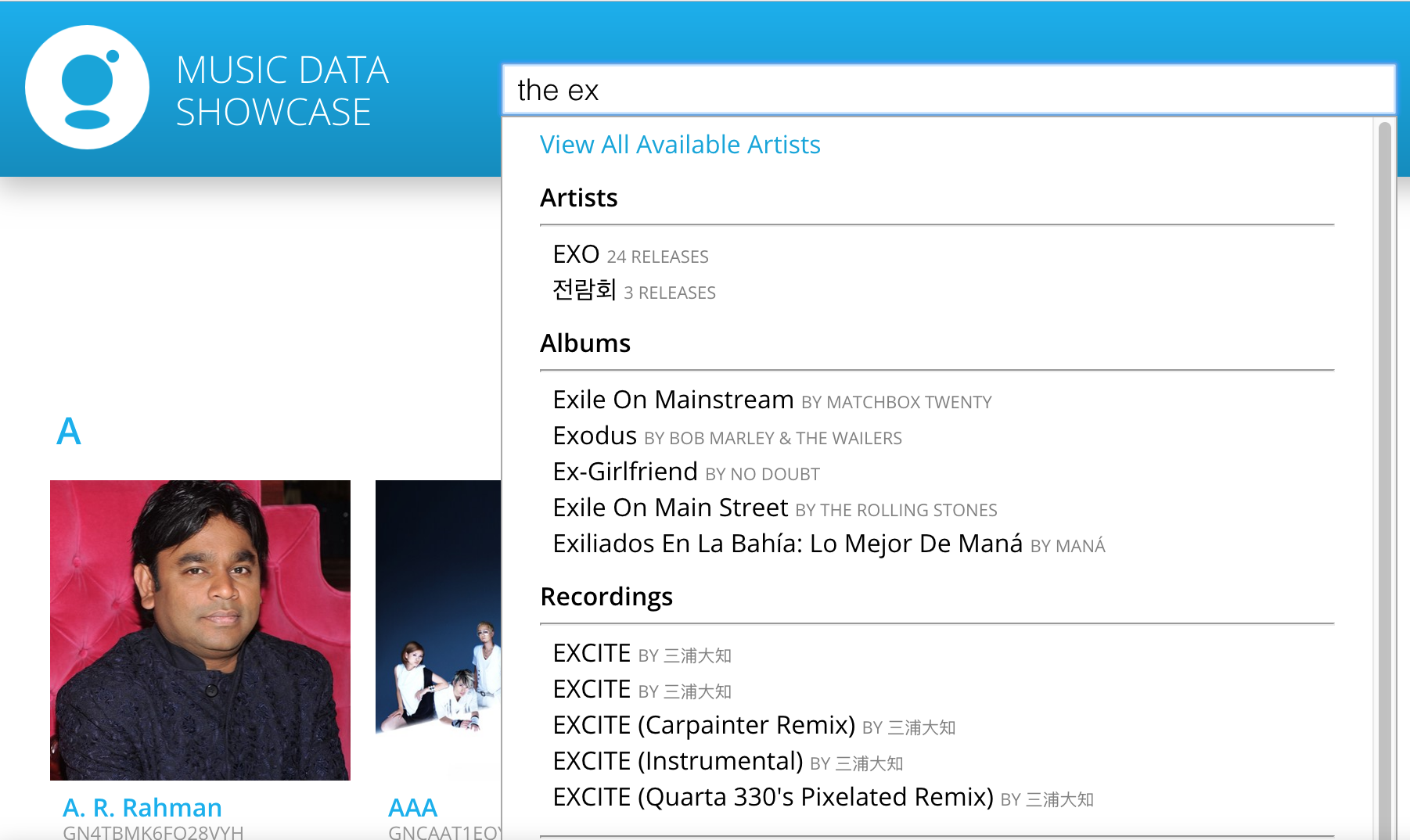

Band names with short names or words are often excluded (in the case for "the" above) or incorrectly identified as being part of a word ("ex" here is being associated with "EXO", "Exile", "Excite" etc.). If users are expected to be searching for such bands, then they will need to be able to search with exact match with the Artist Name or its variants.

Enable exact match searching when the user adds notations such as "" to identify a complete search phrase and only return artistIDs with exact match.

The same can be done for Album Master, Album Edition, Recording and Song Names.

Use Case: Alternate Names and Name Variants

How to enable your search engine to find artists with special characters in their names and/or using another language

Example

P!nk can be searched/known as "Pink", Alicia Beth Moore or 핑크 (Korean), ピンク (Japanese)

Implementation	Search Package
Object Name	nameVariants

• For search functionality, include Alternate Names and Name Variants so users can search based on the artist name they are most familiar with.
• Search across all nameVariants, artistName (under artistName array) and artistName (under alternateNames array) in the Artist file for the target artist.

Use Case: Alternate Names and Name Variants

How to use and how not to display duplicate entries of alternate names.

Example

Snoop Dogg is also known as Snoop, Snoop Doggy Dog etc.

Implementation	Search Package
Object Name	artistID, nameVariants

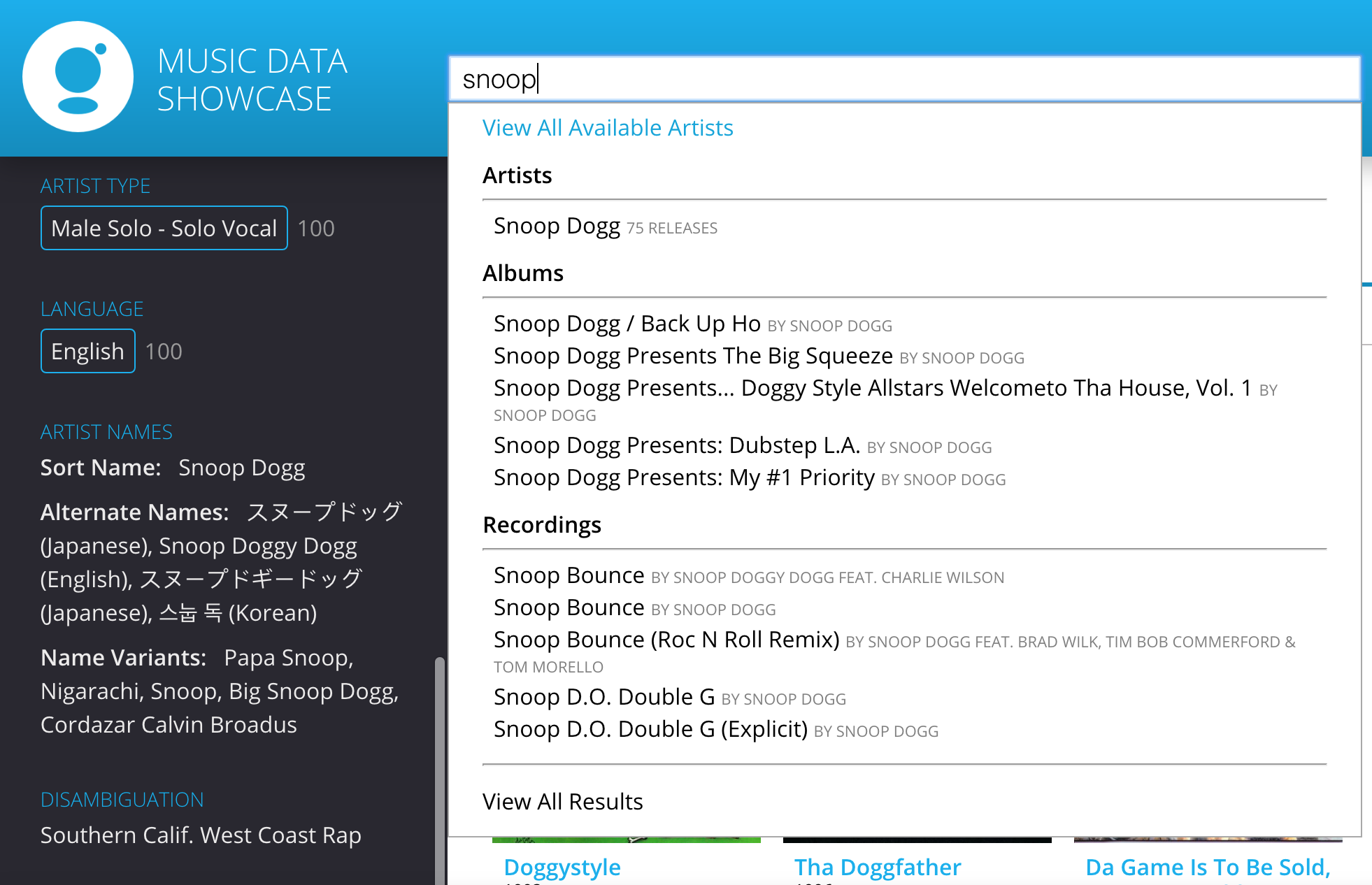

• Each Alternate Name and Name Variant rolls up to the same Artist ID. Display the artist name as the search result. For example, when users type in "Snoop" (as above), the Artist result shows the ArtistName, and does not show Snoop, Snoop Dogg, Snoop Doggy Dog as separate artists/results.
• After retrieving all the matching artist names from the search phrase, look back to the overarching artistID and display artistName (under artistName array) only.

Popularity Scores

Use Case: Popularity of Artist/Recording Names

This use case shows how to use popularity scores to show results in the order of the most popular for both text and voice searches.

Example

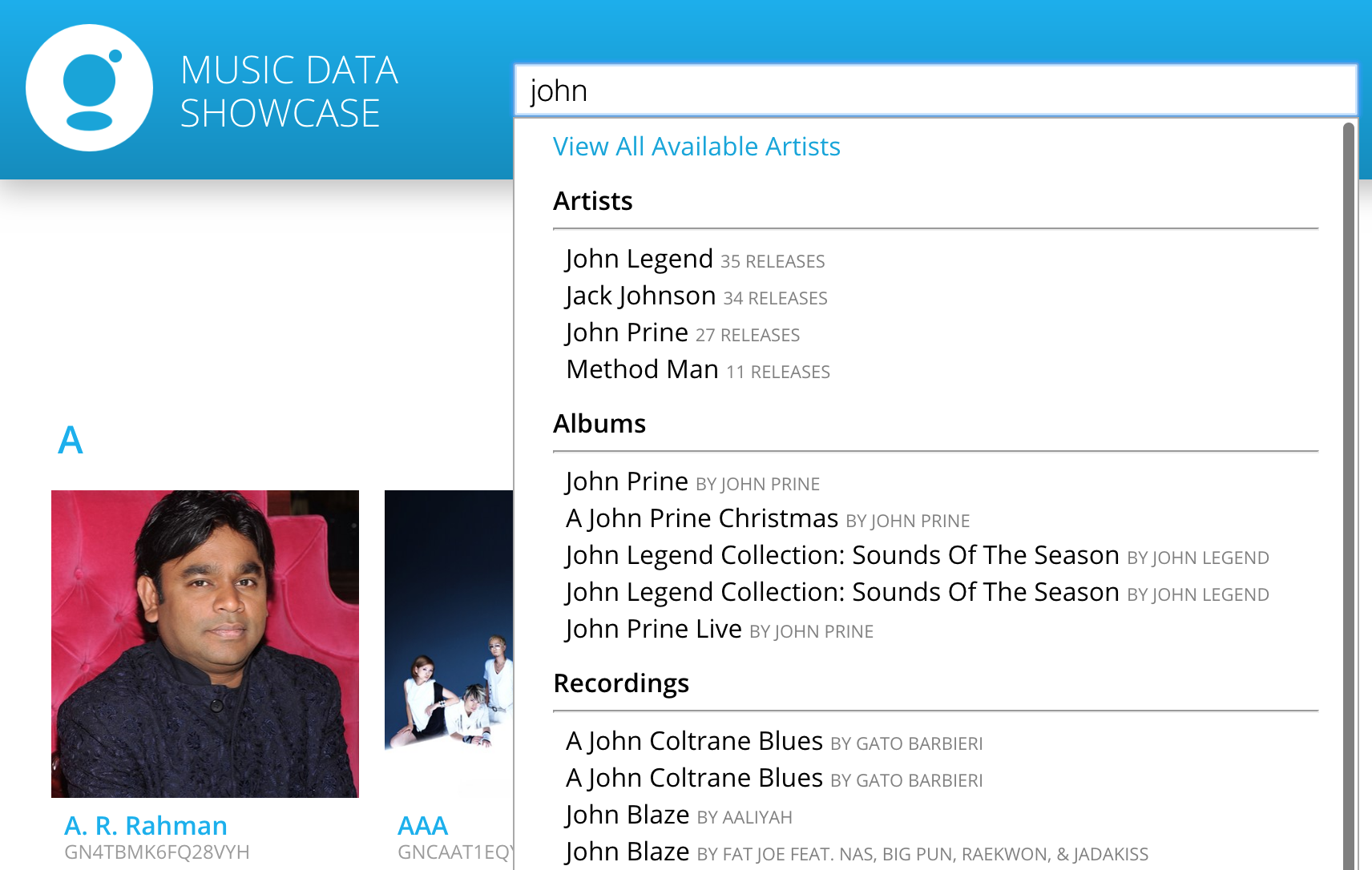

with multiple artists named "John", popularity scores can be used to ensure the return of their search would sort artists and recordings in the order of popularity so end users can more easily locate their desired result.

Implementation	Engagement Package
Object Name	region, score, type (under popularity array)

After returning the results from the user search for both Artist and Recordings, filter popularity scores based on the user location (region), type of score you are looking for (trending vs historical), and sort results in order of score (under popularity array).

Playlisting

This section describes how to generate use playlist based on Descriptors and Popularity Scores

Correlate Tables

Use Case: Genre and Correlates

Power discovery of similar music genres from one genre listing.

Example

Based on the correlation score from the correlates tables of each genre, a similar music can be identified by finding recordings from genres which have a high correlation score from the genre of the key recording.

Implementation	Advanced Discovery Package
Object Name	(under era, artistTypes, genres, origins, moods*, array)
File Name	Artist and Recording

*moods only available at recording level

• Join (1) ID (under descriptors > genres, origins, eras, artistTypes, moods* array) from the Artist or Recording file with mappedDescriptorIDs in the Hierarchy file and (2) mappedDescriptorIDs from the Hierarchy file with (under era, artistTypes, genres, origins, moods*, array) in the Correlates file.
• Based on the weight (under descriptors > genres, origins, eras, artistTypes, moods* array) in the Artist or Recording file and correlates score of each descriptor ID in the Correlates file, you will have a list of descriptors that can be ranked by similarity based on the correlation score.
• To compile a list of similar Artists, you can choose to search for artists that have a similar composition of genres, origins, eras, artistTypes.
• To compile a list of similar Recordings, you can choose to search for recordings from other genres, origins, eras, artistTypes, moods that have a high correlation score.

Popularity Scores

Use Case: Sort Playlist by Popularity

After generating playlists based on seed recording and artists, sort the playlist in order of popularity so users can listen to the most popular songs from the playlist first.

Example

generating a playlist with genre = K-Pop dance will return recordings across different eras, artists, moods etc. Leveraging popularity scores allow end users to hear the most popular songs from the group first allowing them to have a better music discovery experience.

Implementation	Engagement Package
Object Name	region, score, type (under popularity array)

• After returning the results for playlist generation, filter popularity scores based on the user location (region), type of score you are looking for (trending vs historical).
• Sort results in order of score (under popularity array).

Cross-Media Referencing

Gracenote Celebrity IDs (TMS IDs)

Name	Description	Example
TMS ID	Gracenote celebrity identifier for cross-media referencing	artistIDs: 483617

Use Case: TMS IDs

Enable pivoting to an artist's filmography, TV appearances, and/or music videos

Example

• Bruno Mars' TV appearances

Implementation	Engagement Package and GVD Licensing
Name	artistID

• For each artistID, if source (under externalIDs > artistIDs array) equals "tms-music-party-id", cross-media referencing with Gracenote Global Video Database (GVD) is possible.
• Join value (under externalIDs > artistIDs array) from the Artist file with GVD TMS ID to connect to the target artist's filmography, TV appearances, and/or music videos.
